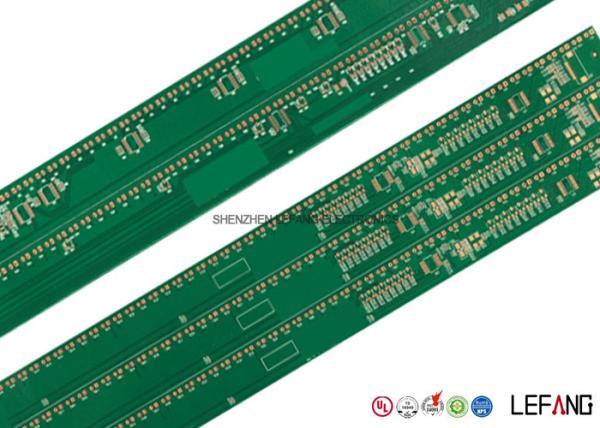

Double Sided OSP LED PCB Board Printed Circuit Board For Led Lights 384*16mm

Name: Double Sided OSP LED PCB Board Printed Circuit Board For Led Lights 38416mm
Brand: LEFANG
Price: 1 USD

Best Double Sided OSP LED PCB Board Printed Circuit Board For Led Lights 384*16mm wholesale

Brand Name : LEFANG

Model Number : RM0002L041&51&156

Certification : ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 290, 000sqm Per Month

Packaging Details : Inner: Vacuum Packing; Dry Packing out Packing

Delivery Time : 2-10 work days

Base Material/ Dielectric : Sy, Kb, Iteq, Isola, Rogers

Layer : 2 Layers

surface treatment : OSP

Board thickness : 1.0mm

Solder Mask : Green

Min. Aperture : 0.3mm

Line Width/Spacing : 0.15/0.15mm

Size : 384*16mm

Contact Now

LED PCB Board Double-Sided OSP Fr4 LED Light Circuit Board PCB for LED

The LED PCB Board is widely used in LED Lighting application, including Subway lightings, Display Lightings, Flashlights, Street Lightings, Household Lightings, etc. Nowadays, LED PCB Boards are nearly existed when you see the light in the dark.

How to get quick quotation?

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc

Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

Material brand: SY / KB / Rogers (optional)

Material Specification:High Tg / copper based / aluminum based or others (optional)

Board thickness: 0.1 - 6.0 mm

Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )

Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin

Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc

Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE
Board material	Fr - 4
Material brand	KB
Material Specification	Tg 170
Board thickness	1.6 mm
Copper thickness	1 Oz
Surface Treatment	ENIG
Solder mask / sSilk print	Green / White
Board size	100 mm * 100 mm
Quantity	10k

Technical Data

No.	Item	Data
1	Layer count	1-20 layers
2	Raw material type	Halogen free FR-4, high Tg FR-4, thick copper FR-4, CEM-3, copper based, aluminum based
3	Raw material brand	Rogers,Isola,Arlon, ITEQ, Hitachi, SY, KB,etc
4	Board thickness	0.1-6.0mm
5	Max board size	600 mm * 700 mm
6	Solder mask	Green, red, blue, black, white, yellow
7	Surface treatment	HASL/HASL lead free , OSP, Immersion gold / silver / tin , gold plating (hard gold and soft gold), silver plating, tin plating, platinum plating, carbon ink, and ENEPIG(electroless nickel - electroless palladium - immersion gold)
8	Copper thickness	0.05 Oz - 8 Oz (17 um-288 um )
9	Min Line width /space	0.065 mm / 0.065 mm
10	Finished hole size	0.10 - 5.95 mm
11	Blind/buried via	0.10 mm
12	Aspect ratio	10:1
13	PTH tolerance	+ / - 0.05 mm
14	Hole location tolerance	+ / - 0.05 mm
15	Impedance control tolerance	+ / - 8% mm
16	Outline tolerance	+ / - 0.10 mm

Lead Time

Layer count	Sample lead time/workday	Batch lead time/workday
1-2L	2	6
4L	5	8
6L	5	9
8L	6	10
10L	8	10
12L	8	12
14L	10	15
16L	10	18
18-40L (Up to difficulty)	at least 18	at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

What kinds of quality Raw Materials will be used?

Board Brand	ITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc
Potion	Rohm & Haas, Atotech, Umicore
Printing Ink	Taiyo, Rongda
Dry Film	Asahi, Dupont, Etertec

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - High Tg PCB

The glass transition temperature (Tg) is an important normative dimension for the base material that determines the temperature at which the resin matrix converts from a glassy, brittle condition into a soft, elastic one.

Normally high Tg refers to high heat resistance in PCB raw material.

The standard Tg for copper clad laminate is between 130 – 140℃. High Tg is generally greater than 170℃, and middle Tg is generally greater than 150℃. Basically the printed circuit board with Tg≥170℃, we call high Tg PCB.

The higher of TG value, the better of pcb high temperature resistance.
